Plotting light curves

LSST light curves can be tricky to plot, so we’ve provided an easy method for a single light curve.

If you’d like to do anything more complicated, like multiple light curves on a single grid, you should consider your own plotting methods.

By default, our methods use the Rubin-recommended palattes, which try to make the plots colorblind-friendly.

Fetch some catalog data

We will use mock DP1 data. This data has been fuzzed to show the general structure of a HATS DP1 catalog, without exposing protected Rubin data.

Note that we have two different light curves on the diaObject table: diaSource and diaObjectForcedSource. You should consider which is more appropriate for your science use case.

[1]:

import lsdb
from lsdb_rubin.plot_light_curve import plot_light_curve

[2]:

dia_object = lsdb.open_catalog("../../tests/data/mock_dp1_1000")
dia_object = dia_object.compute()
dia_object

[2]:

diaObjectId

ra

dec

nDiaSources

radecMjdTai

tract

diaSource

diaObjectForcedSource

164880635168346054

4649294066630237364

32.454472

35.990116

24

60644.727423

531

visit	detector	...	scienceMag	scienceMagErr
2024115005682	1	...	32.278538	2.077526
+23 rows	...	...	...	...

parentObjectId	coord_ra	...	psfMagErr	midpointMjdTai
0	23.982853	...	4.263352	60638.638637
+24 rows	...	...	...	...

264907950746260169

4624929140954397868

10.687421

68.569475

23

60651.313693

9273

visit	detector	...	scienceMag	scienceMagErr
2024120100556	0	...	14.280432	0.32603
+22 rows	...	...	...	...

parentObjectId	coord_ra	...	psfMagErr	midpointMjdTai
0	31.223755	...	3.523922	60638.151575
+26 rows	...	...	...	...

239647224744314464

4649822373104108975

77.935377

64.983096

26

60649.146059

2392

visit	detector	...	scienceMag	scienceMagErr
2024115797764	0	...	15.883984	0.262028
+25 rows	...	...	...	...

parentObjectId	coord_ra	...	psfMagErr	midpointMjdTai
0	15.542584	...	5.792558	60638.861268
+31 rows	...	...	...	...

110828807158025334

4658315645230505927

54.055610

36.212969

29

60644.832787

489

visit	detector	...	scienceMag	scienceMagErr
2024115628387	2	...	17.784328	1.174745
+28 rows	...	...	...	...

parentObjectId	coord_ra	...	psfMagErr	midpointMjdTai
0	19.511847	...	1.698166	60638.1216
+32 rows	...	...	...	...

274570109399128569

4681220430264917018

46.916148

77.036664

26

60638.188747

5329

visit	detector	...	scienceMag	scienceMagErr
2024113884443	2	...	16.140474	2.926271
+25 rows	...	...	...	...

parentObjectId	coord_ra	...	psfMagErr	midpointMjdTai
0	64.692012	...	0.104414	60638.408643
+28 rows	...	...	...	...

...

1000 rows x 8 columns

Basic usage

You MUST provide a single light curve as the first argument. This is the entire contents of the lightcurve nested data frame.

This is the only required argument, however, and we will use the psfMag column by default.

[3]:

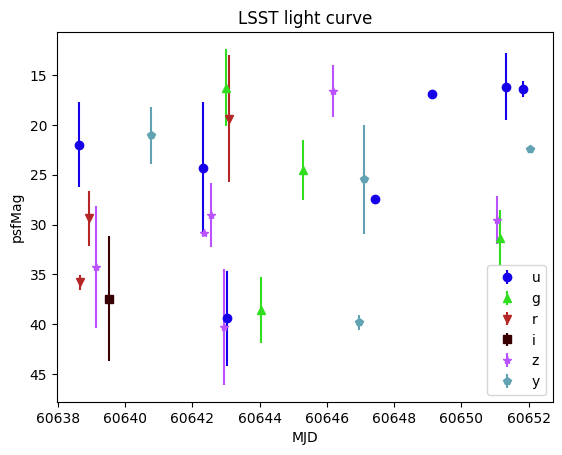

plot_light_curve(dia_object.iloc[0]["diaObjectForcedSource"])

../_images/notebooks_plot_light_curves_5_0.png

Using a different brightness

You can use either a magnitude or flux column. Straight from the Rubin Butler, you will only have flux, but the HATS pipeline adds magnitudes (and magnitude errors) from flux (and flux error) columns.

If you set a flux column, the y-axis will be un-inverted.

[4]:

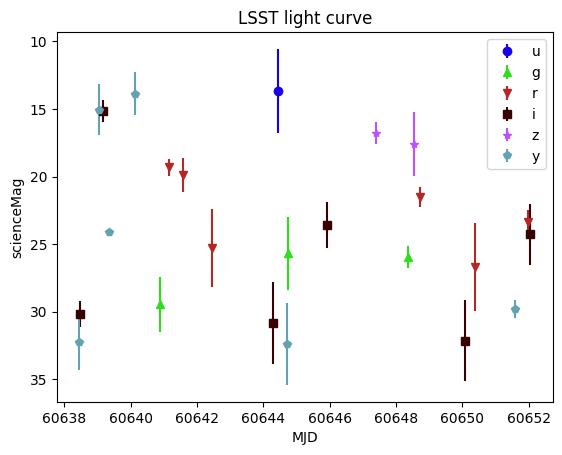

plot_light_curve(dia_object.iloc[0]["diaSource"], mag_field="scienceMag")

../_images/notebooks_plot_light_curves_7_0.png

[5]:

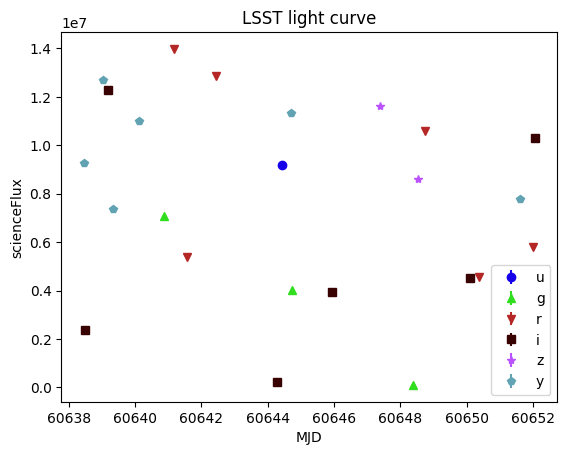

plot_light_curve(dia_object.iloc[0]["diaSource"], flux_field="scienceFlux")

../_images/notebooks_plot_light_curves_8_0.png

Phase-folded light curves

Our example light curves are not pretty, but we can show them phase-folded by simply providing a period argument, in days. This will fold the light curve according to the provided period, and the x-axis reflects the phase in the period.

[6]:

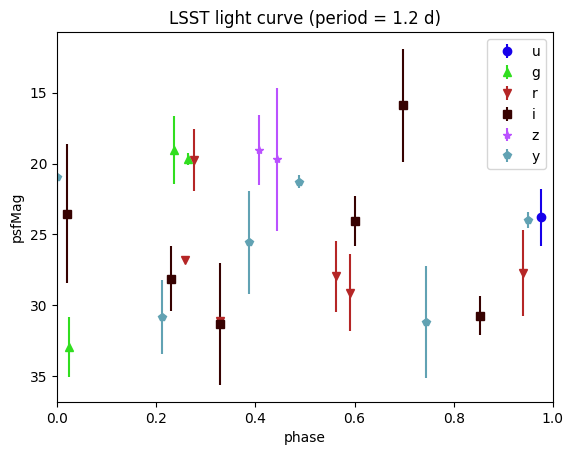

plot_light_curve(dia_object.iloc[0]["diaSource"], period=1.2)

../_images/notebooks_plot_light_curves_10_0.png

[7]:

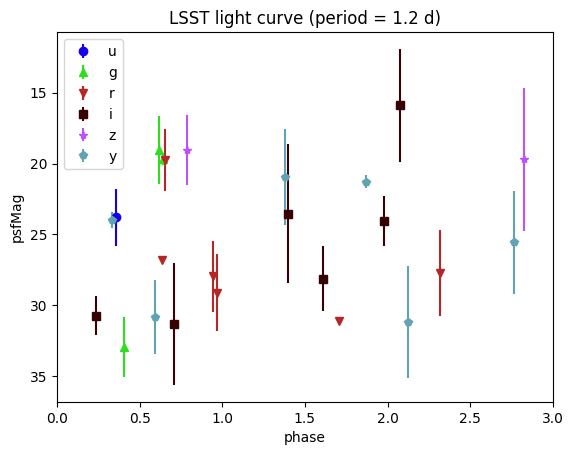

plot_light_curve(dia_object.iloc[0]["diaSource"], period=1.2, num_periods=3, period_mjd0=60640.4)

../_images/notebooks_plot_light_curves_11_0.png

Incomplete band data

If you are missing data in one or more bands, those will not appear in the legend. The following light curve doesn’t have any r-band observations.

[8]:

missing_r = dia_object.query("diaObjectId == 4670308463850921897")

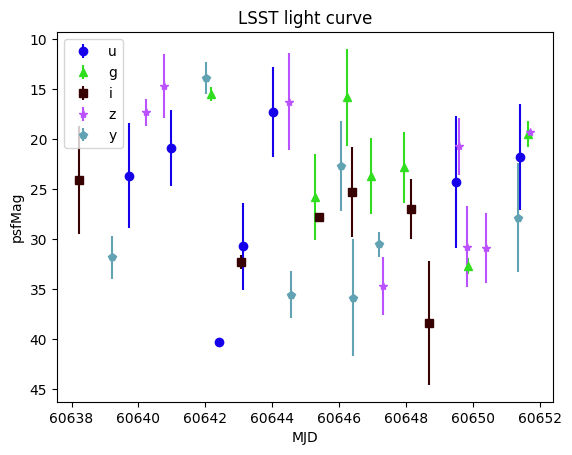

plot_light_curve(missing_r.iloc[0]["diaObjectForcedSource"])

../_images/notebooks_plot_light_curves_13_0.png

Customizing appearance

While we use the default Rubin color-blind friendly palatte, that might not work for you for whatever reason. For visual aspects of the plot that will vary by band, you can pass in a dictionary that maps the band string to the desired value.

filter_colors
filter_symbols
filter_linestyles

The first example uses a built-in color palatte, while the second example defines a new map.

[9]:

from lsdb_rubin.plot_light_curve import (
    plot_filter_colors_rainbow,
    plot_linestyles,
    plot_linestyles_none,
)

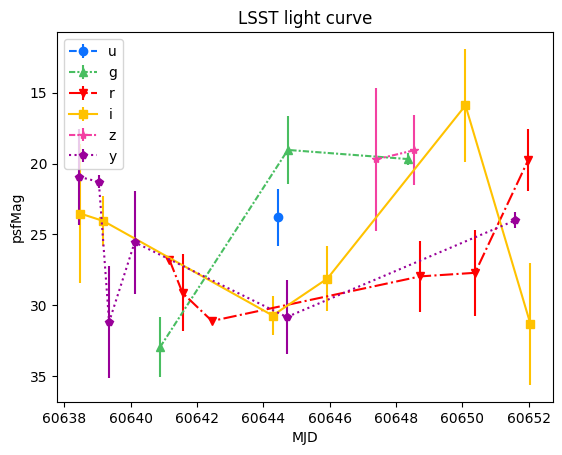

plot_light_curve(
    dia_object.iloc[0]["diaSource"],
    filter_colors=plot_filter_colors_rainbow,
    filter_linestyles=plot_linestyles,
)

../_images/notebooks_plot_light_curves_15_0.png

[10]:

color_map = {
    "y": "#0c71ff",  # Blue
    "z": "#49be61",  # Green
    "i": "#ff0000",  # Red
    "r": "#ffc200",  # Orange/Yellow
    "g": "#f341a2",  # Pink/Magenta
    "u": "#990099",  # Purple
}

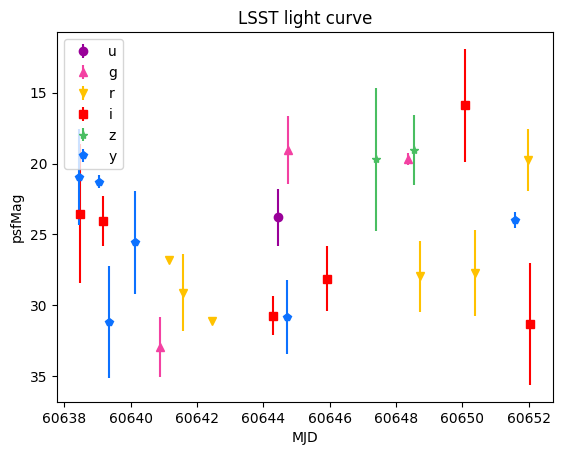

plot_light_curve(dia_object.iloc[0]["diaSource"], filter_colors=color_map)

../_images/notebooks_plot_light_curves_16_0.png

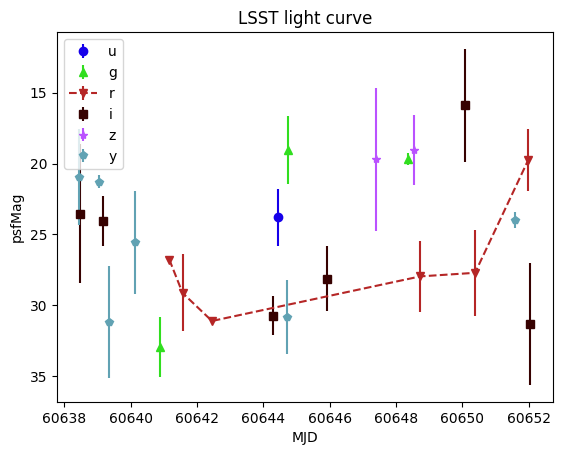

You can also override a single value of the existing by-filter maps. In this case, we’re adding a line only in the r band.

[11]:

plot_light_curve(
    dia_object.iloc[0]["diaSource"],
    filter_linestyles=plot_linestyles_none | {"r": "--"},
)

../_images/notebooks_plot_light_curves_18_0.png
